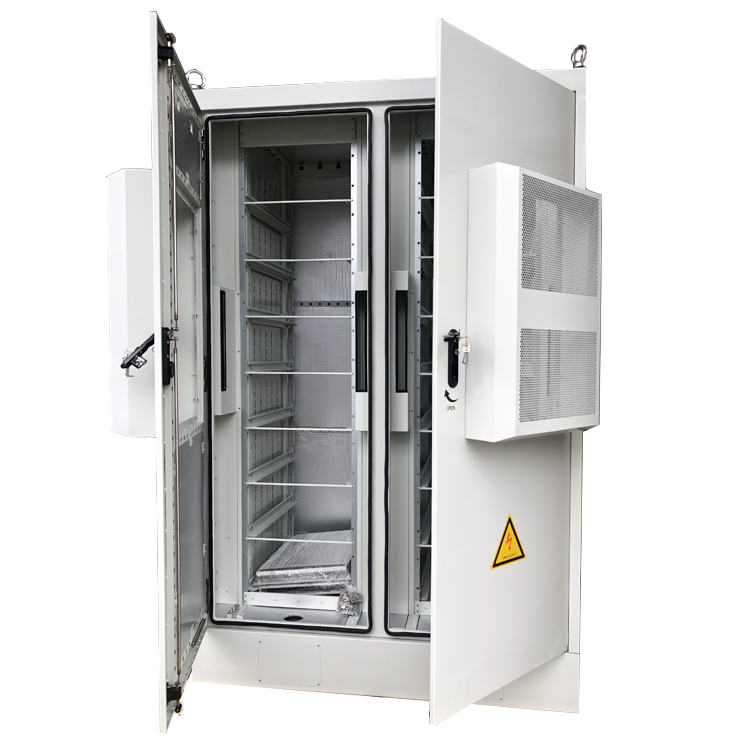

Telecom integrated cabinet
utdoor integrated cabinets
There are three modes of cabinet structure: 1. Double-layer sheet metal + PEF flame retardant heat insulation cotton; 2.
Single-layer sheet metal + PEF flame retardant heat insulation cotton; 3. Sheet metal frame + EPS sandwich board The outdoor integrated cabinet adopts semi-embedded industrial air conditioning to dissipate heat, and the sheet metal adopts professionaloutdoor powder spray processing, which is beautiful, convenient to maintain, constant temperature, and anti-theft, waterproof,dustproof, anti-sun, anti-corrosion, IP55 protection grade, the utility model can meet the requirements of outdoor harsh environment for a long time.
Single-layer sheet metal + PEF flame retardant heat insulation cotton; 3. Sheet metal frame + EPS sandwich board The outdoor integrated cabinet adopts semi-embedded industrial air conditioning to dissipate heat, and the sheet metal adopts professionaloutdoor powder spray processing, which is beautiful, convenient to maintain, constant temperature, and anti-theft, waterproof,dustproof, anti-sun, anti-corrosion, IP55 protection grade, the utility model can meet the requirements of outdoor harsh environment for a long time.
|
Item
|
LiFePO4 battery cabinet(23U)
|
|
Dimension(HxWxD)
|
External dimensions:1350*750*750mm
Internal dimensions :1150x650x650mm |
|
Material and thick
|
1.2 mm thick SPCC frame
|
|
Insulation thickness
|
45mm thick EPS sandwich board
|
|
Maintenance method
|
Front door
|
|
Assembling method
|
Floor
|
|
Rack size
|
19 inch equipment rack/one battery rack+19 inch equipment
|
|
Protection level
|
IP59
|
|
Working temperature
|
-40℃~+55℃
|
|
Cool system
|
1500W AC compress air conditioner
|
Product Features:
* The cabinet is not directly disassembled from the outside, which affects the safety and use of components; The cabinet is compact in structure,easy to install, excellent in sealing performance, and the protection level reaches IP55. *The cabinet adopts PEF or EPS flame retardant heat insulation cotton, with good thermal insulation performance and thermal conductivity<0.0472W /(m2.k). *The cabinet door adopts a built-in structure, and the gap between the doors is tight. The doors opening angle are > 110°, the cabinet door contains a limit structure, and the door limit device has a limit function when the door is in the “open” state. The cabinet door lock adopts a three-point structural mechanical lock with a lever and a locking piece, which has an anti-pry function, a solid structure, and strong anti-theft. * The cabinet adopts bottom entry and exit methods. Inside the cabinet, wire channels are used. The AC, DC, signal, and ground wires are separately routed and bundled separately. The overall appearance is beautiful; the bottom of the cabinet is equipped with an anti-corrosion coating grounding bronze. * The cabinet door is equipped with semi-embedded industrial air conditioner, which does not occupy the internal space of the cabinet and operates at a constant temperature, thereby prolonging the service life of electronic equipment. * The cabinet is treated with professional outdoor powder spray (RAL 7035 as the default color) to prevent rust and corrosion.Our outdoor integrated cabinet products are mainly used in communication, radio and television, energy storage, power,
transportation,environmental monitoring station, smart city, lighting control, security and other industries. Outdoor integrated cabinet consists of a cabinet body, base, top cover, internal rack, cabinet lock, and industrial air conditione
transportation,environmental monitoring station, smart city, lighting control, security and other industries. Outdoor integrated cabinet consists of a cabinet body, base, top cover, internal rack, cabinet lock, and industrial air conditione
